As more and more homeowners consider solar energy for their home, it’s important to understand one of the most important components within a solar panel system– the solar inverter. This guide will walk you through everything you need to know about solar inverters and how they work.
What they are and how they work
Solar inverters are at the heart of any solar energy system. When sunlight hits the photovoltaic cells in your solar panels, it generates DC electricity. But DC currents are not usable by your home’s electrical system and appliances. That’s where a solar inverter comes in. The inverter converts this DC electricity into AC electricity, ensuring that the power generated by your solar panels can be used effectively, efficiently, and safely throughout your home. If your solar panel system is producing more electricity than you need, this additional power can be fed back into the electrical grid thanks to inverters.
Types of solar inverters

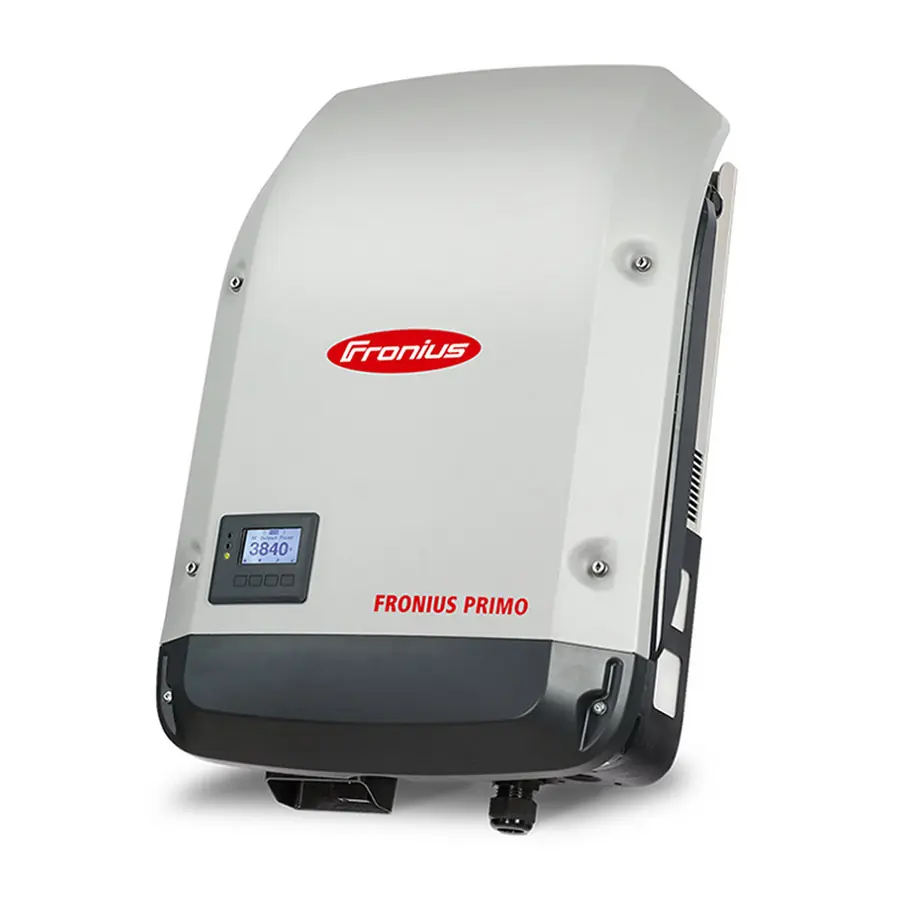

Central Inverters
Central inverters historically have been the most common type of inverter found in residential solar installations due to their simplicity and lower cost. All the panels in the solar system are connected to one central inverter. For this reason, they are also known as string inverters, because they string the power from all panels together. These types of inverters work best in systems where all panels face the same direction on a single plane that experiences little disruption from shade or other sun-blocking elements. While these types of inverters are the most cost efficient, this also means there is one central point of failure. If the central inverter fails, your entire solar power system could go down.

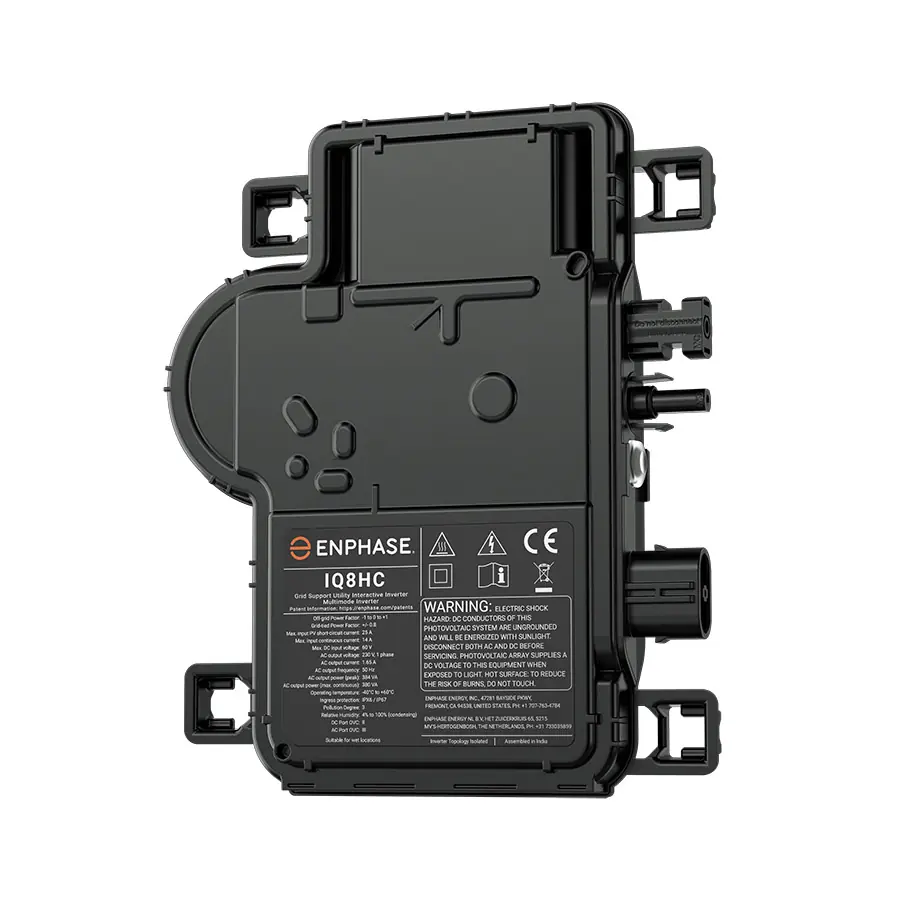

Microinverters
Microinverters are installed on each individual solar panel, which allows for independent operation and maximized efficiency. They are more expensive initially, but offer greater reliability and performance. They are especially well suited for systems with complex roof layouts or where shading issues may be present. They are also ideal for those who may enlarge their solar system in the future, due to their expandable nature. Microinverters also don’t generate much heat or require mechanical cooling to maintain optimal energy efficiency. This makes them last much longer compared to string inverters.
At Public Service Solar, we use premium Enphase Microinverters on all solar installs to ensure your system is optimized for maximum efficiency and power production.

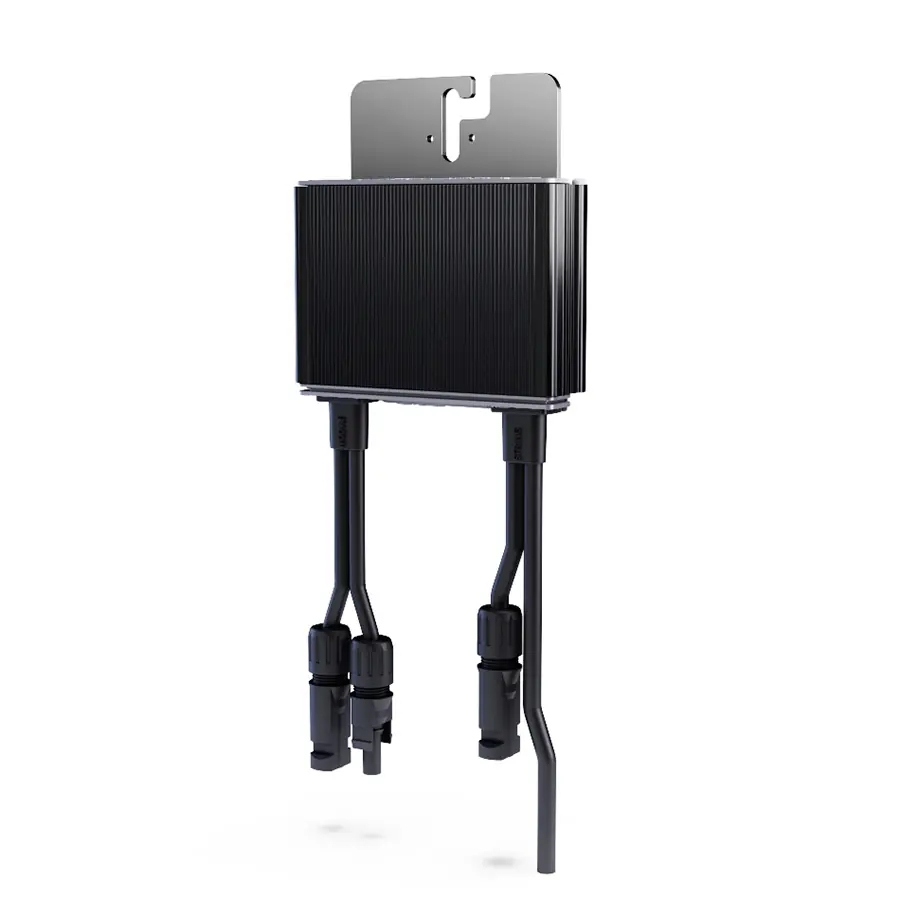

Power Optimizers
Power optimizers work in conjunction with a central or string inverter, and are attached to each solar panel. They help optimize the power output of each panel individually and send the optimized DC power to the central inverter for conversion. Some homeowners choose this hybrid approach for a balance between efficiency and cost-effectiveness, however you still have a single point of failure with the central converter.
Advantages of solar inverters
Energy savings and ROI
One of the primary advantages of using a solar inverter is the potential for significant energy savings. By converting solar energy into usable electricity, you can reduce your reliance on grid power from your utility company and lower your electricity bills. You may even be able to offset your entire electric bill during months with abundant sunshine. Over time, these savings can add up, providing a substantial return on investment (ROI).
Environmental benefits
Solar inverters contribute to environmental sustainability by enabling the use of clean, renewable energy. By reducing your dependence on fossil fuels, you can decrease your carbon footprint and help combat climate change. Switching to solar power is a proactive step toward a greener future. And if you live in a state with an SREC program like Pennsylvania or New Jersey, you can sell your SRECs to the utility company. This not only provides you with another financial incentive, but it also helps these entities meet their Renewable Portfolio Standards. Click here to learn more about SRECs (Solar Renewable Energy Certificates).
Factors to consider when choosing a solar inverter
Efficiency, durability, and warranty
When selecting a solar inverter, efficiency is a crucial factor. Higher efficiency means more energy conversion and, ultimately, more savings on your electric bill. Durability is also essential; you want an inverter that can withstand various weather conditions and last for many years. Lastly, consider the warranty offered by the manufacturer. Premium manufacturers like Enphase offer a 25 year warranty on their microinverters, providing peace of mind for your investment.
Compatibility with solar panels and grid connection
Ensure that the solar inverter you choose is compatible with your solar panels and meets the grid connection requirements in your area. Some inverters are better suited for specific panel types or grid configurations. A reputable solar installer should guide you through this during the initial consultation and system design process.

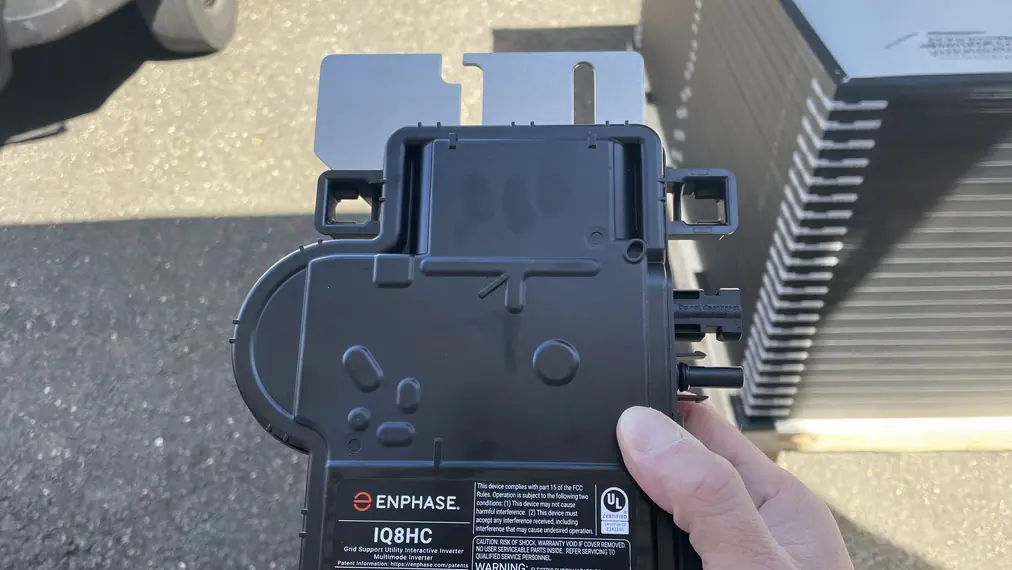

Maintenance tips to prolong inverter life
To ensure the longevity and optimal performance of your solar inverter, regular maintenance is key depending on the type of inverter you system uses. For central inverters, make sure to regularly clean the inverter and its surroundings to prevent dust and debris buildup. Check for any loose connections or signs of wear and tear. Additionally, schedule annual inspections with a professional to identify and address any potential issues early on. For microinverters, you’ll also want to make sure they are clear of any debris. However if your panels were installed with pest guard around the panels, this will pretty much negate the issue and makes your microinverters virtually maintenance free!
The future of solar inverters
The field of solar technology is constantly evolving, and solar inverters are no exception. Recent advancements include the development of smart inverters, which offer enhanced monitoring and control capabilities. These inverters can communicate with the grid, adjust their output based on grid conditions, and provide valuable data to homeowners and utilities. They also work incredibly well with solar battery storage, and can intelligently bypass charging the battery when appropriate and adjust power output based on need.
Looking ahead, we can expect to see further improvements in inverter design and functionality. Innovations such as integrated energy storage solutions, increased efficiency, and enhanced durability are on the horizon. These advancements will make solar energy systems even more reliable, efficient, and accessible for homeowners.
Final thoughts on inverters
Solar inverters are a vital component of any solar energy system. By understanding the different types of inverters, considering key factors when choosing one, and following regular maintenance practices, you can maximize the performance and longevity of your solar inverter.
If you’re interested in exploring solar energy further, consider signing up for our newsletter or contacting one of our experts. Public Service Solar will gladly provide you a free estimate and consultation for your home.
